VELTRIX GRINDCORE GC-330
The flexible multi-spindle solution for demanding chuck work.

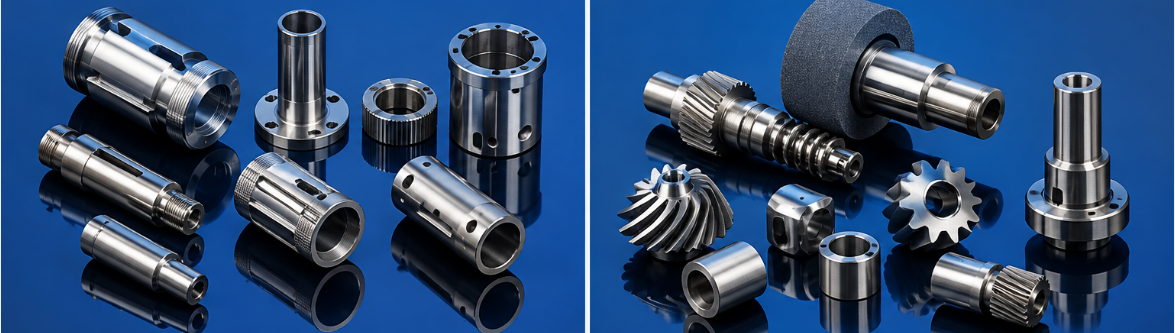

The GC-330 is a highly flexible internal cylindrical grinding machine built for medium-sized workpieces where mixed external and internal grinding operations must happen in a single clamping. With up to three grinding spindles arranged linearly, the GC-330 minimizes repositioning and maximizes accuracy across individual components through small-batch production. An optional, fully integrated automatic loading and unloading system transforms the GC-330 into a cost-effective automated cell for high-precision production.

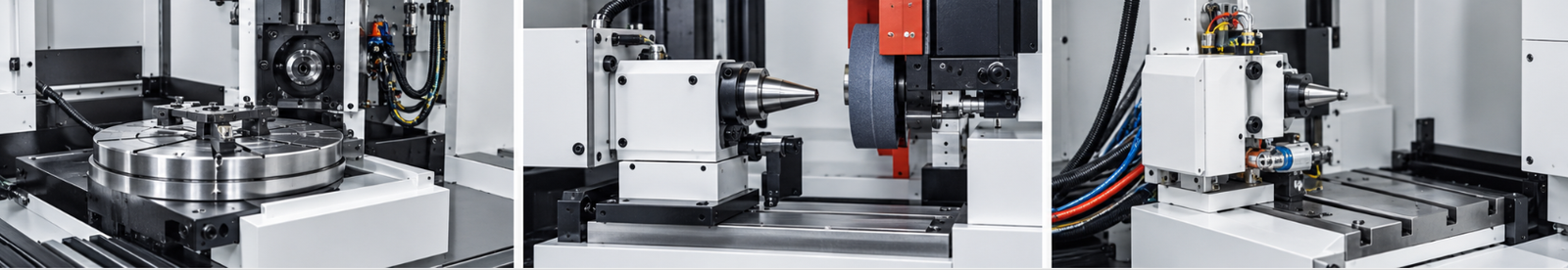

Hardware Features
- Up to three grinding spindles in a linear arrangement
- High-frequency or belt-driven spindle options
- External grinding wheel capacity up to approximately 310 mm diameter on a dedicated spindle

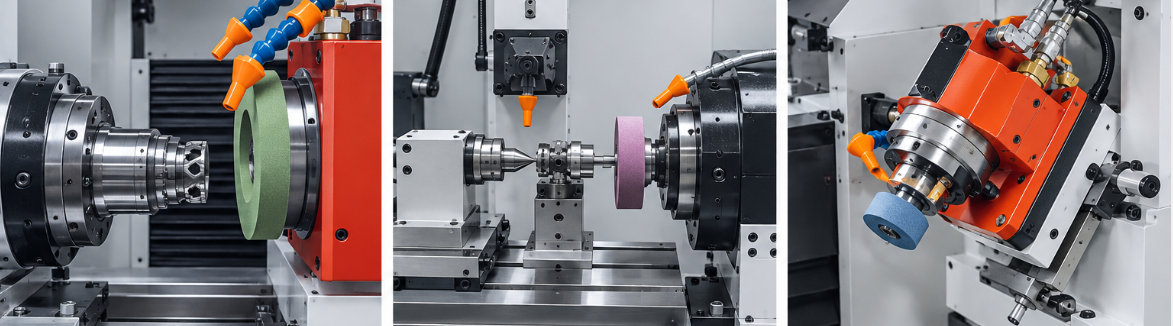

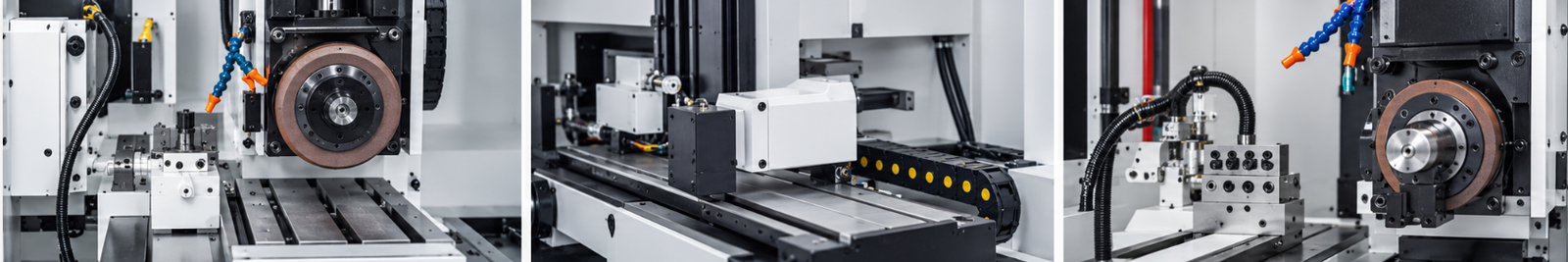

- External and internal grinding possible within a single clamping
- Full enclosure with sliding door for operator safety and coolant containment
- Integrated or autonomous automatic loading systems available
- Fanuc Oi-TD / Fanuc 31i-A control compatibility (with loader)
Software Features
- Program-simulation software for creating and testing grinding programs on the control or on a PC.
- Graphical, menu-guided programming for quick creation and modification of grinding cycles.
- Integrated grinding-cycle library for internal, external, face, taper and plunge grinding operations.
- Automatic calculation of grinding parameters based on workpiece, wheel and process data.
- 2D/3D graphical simulation of the grinding process with collision monitoring.
- Offline programming capability to prepare new jobs without interrupting machine production.
- Automatic dressing-cycle programming with graphical definition of wheel profiles.
- Grinding-wheel management with storage of wheel dimensions, profiles, dressing data and correction values.
- Tool and workpiece database for fast recall of proven process parameters.
- Automatic compensation for grinding-wheel wear and dressing-related dimensional changes.
- In-process measurement interface with automatic dimensional correction during the grinding cycle.
- Adaptive grinding functions for optimization of feed rate, grinding pressure and cycle time.
- Automatic probing and workpiece-position detection for reduced setup time.
- Multi-spindle and multi-wheel software management for flexible grinding of complex components.
- Automatic changeover between different grinding operations within one program.
- Parameterized programming for families of components with similar geometries.
- Macro programming for customized grinding sequences and special applications.
- Process monitoring of spindle load, grinding power, vibration and cycle conditions.
- Automatic alarm diagnostics with clear fault messages and troubleshooting guidance.
- Production-data recording including cycle time, quantities, machine status and process parameters.
- Statistical Process Control (SPC) interface for monitoring dimensional consistency and process capability.
- Recipe management with password-protected storage of approved grinding programs.
- User-level management with configurable operator, setter, maintenance and administrator access.
- Automatic backup and restoration of programs, machine parameters and production data.
- Network connectivity for transfer of grinding programs between machine, server and engineering PC.
- Remote diagnostics and service-support capability through secure network connection.
- Interface capability for Industry 4.0 / factory data systems such as OPC UA or other open communication protocols.
- Preventive-maintenance monitoring with service intervals, lubrication reminders and machine-condition records.
- Energy and machine-utilization monitoring for improved production efficiency.
- Multilingual HMI with configurable operator screens and customizable process displays.
- Program version control and traceability for production and quality documentation.
Technical Data — GC-330
| Specification | Veltrix Published Value |
|---|---|
| Max. Travel X | 400 mm (15.75 in) |
| Max. Travel Speed X | 15,700 mm/min (618 in/min) |
| Max. Travel Z | 210 mm (8.27 in) |
| Max. Travel Speed Z | 12,700 mm/min (500 in/min) |
| Max. Spindle Power | 16 kW (21.5 hp) |
| Max. Number of Revolutions | 128,400 rpm |
| Max. Grinding Wheel Diameter | 310 mm (12.2 in) |
| Max. Grinding Wheel Width | 34 mm (1.34 in) |
| Swiveling Range C | ∞ (continuous) |
| Workpiece Length | 250 mm (9.84 in) |
| Workpiece Diameter | 130 mm (5.12 in) |
| Max. Workpiece Weight | 52 kg (115 lbs) |
| Center Height | 110 mm (4.33 in) |
Detailed technical specifications can be provided upon request. Specifications and features are subject to change without prior notice. Optional accessories and special configurations can be offered on request. Final specifications and scope of supply shall be as confirmed in our techno-commercial offer. Minor customization can be offered based on customer requirements and technical feasibility.
